DN15 To DN100 Stainless Steel Sanitary Valves - SMS Butterfly Valve For Food Brewery

Stainless Steel Sanitary Valves - SMS Butterfly Valve For Food Brewery

Sanitary SMS Butterfly Valve is SMS series sanitary butterfly valves, we offer it from DN15 to DN100 in stainless steel 1.4301, 1.4404, T304, T316L etc. Sanitary SMS butterfly valve is our strength sanitary valves , we make it by CNC machine to get high precision and high purity surface to meet the request of hygienic industries. It is idea choice for the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.

Size	1/2″ to 8″
Material	SS304, SS316L, etc
Sealing	EPDM (Optional: Silicone; Viton)
Connection	Welding; Threaded; Clamped; Welding/Threaded; Flanged.
Standard	ISO, DIN, SMS, 3A, IDF, RJT
Drive	Handle or Pneumatic

Specification and Dimension

Dimension of Sanitary Welded Butterfly Valve – SMS Series

Dimension of Sanitary Welded Butterfly Valve – SMS Series

Size	O	D	K x K	A	H
19	78.0	19.0	8.2*8.2	50.0	39.0
25	78.0	25.4	8.2*8.2	50.0	39.0
32	80.0	31.8	8.2*8.2	50.0	40.0
38	80.0	38.1	8.2*8.2	50.0	40.0
51	100.0	50.8	8.2*8.2	50.0	50.0
63	117.0	63.5	10.0*10.0	56.0	57.0
76	129.0	76.2	10.0*10.0	60.0	64.5
89	140.0	88.9	10.0*10.0	62.0	70.0
102	160.0	101.6	10.0*10.0	66.0	80.0

Dimension of Sanitary Clamped Butterfly Valve – SMS Series

Dimension of Sanitary Clamped Butterfly Valve – SMS Series

Size	O	D	K x K	A	H
19	78.0	50.5	8.2*8.2	68.0	39.0
25	78.0	50.5	8.2*8.2	68.0	39.0
32	80.0	50.5	8.2*8.2	72.0	40.0
38	80.0	50.5	8.2*8.2	72.0	40.0
51	100.0	64.0	8.2*8.2	72.0	50.0
63	117.0	77.5	10.0*10.0	84.0	57.0
76	129.0	91.0	10.0*10.0	84.0	64.5
89	140.0	106.0	10.0*10.0	86.0	70.0
102	160.0	119.0	10.0*10.0	90.0	80.0

Dimension of Sanitary Three-piece Butterfly Valve – SMS Series

Dimension of Sanitary Three-piece Butterfly Valve – SMS Series

Size	O	D	K x K	A	H
19	78.0	19.1	8.2*8.2	100.0	39.0
25	78.0	25.2	8.2*8.2	100.0	39.0
32	80.0	31.8	8.2*8.2	100.0	40.0
38	80.0	38.1	8.2*8.2	100.0	40.0
51	100.0	50.8	8.2*8.2	100.0	50.0
63	117.0	63.5	10.0*10.0	100.0	57.0
76	129.0	76.2	10.0*10.0	100.0	64.5
89	140.0	88.9	10.0*10.0	100.0	70.0
102	160.0	101.6	10.0*10.0	108.0	80.0

Dimension of Sanitary Threaded Butterfly Valve – SMS Series

Dimension of Sanitary Threaded Butterfly Valve – SMS Series

Size	O	G	K x K	A	H
19	78.0	RD34*1/8	8.2*8.2	68.0	39.0
25	78.0	RD40*1/6	8.2*8.2	68.0	39.0
32	80.0	RD48*1/6	8.2*8.2	68.0	40.0
38	80.0	RD60*1/6	8.2*8.2	68.0	40.0
51	100.0	RD70*1/6	8.2*8.2	76.0	50.0
63	117.0	RD85*1/6	10.0*10.0	80.0	57.0
76	129.0	RD98*1/6	10.0*10.0	80.0	64.5
89	140.0	RD110*1/6	10.0*10.0	84.0	70.0
102	160.0	RD125*1/6	10.0*10.0	90.0	80.0
102	160.0	RD132*1/6	10.0*10.0	90.0	80.0

Dimension of Sanitary Welded x Threaded Butterfly Valve – SMS Series

Dimension of Sanitary Welded x Threaded Butterfly Valve – SMS Series

Size	O	D	G	K x K	A	H
19	78.0	19.1	RD34*1/8	8.2*8.2	59.0	39.0
25	78.0	25.4	RD40*1/6	8.2*8.2	59.0	39.0
32	80.0	31.8	RD48*1/6	8.2*8.2	59.0	40.0
38	80.0	38.1	RD60*1/6	8.2*8.2	59.0	40.0
51	100.0	50.8	RD70*1/6	8.2*8.2	63.0	50.0
63	117.0	63.5	RD85*1/6	10.0*10.0	68.0	57.0
76	129.0	76.2	RD98*1/6	10.0*10.0	70.0	64.5
89	140.0	88.9	RD110*1/6	10.0*10.0	73.0	70.0
102	160.0	101.6	RD125*1/6	10.0*10.0	78.0	80.0
102	160.0	101.6	RD132*1/6	10.0*10.0	78.0	80.0

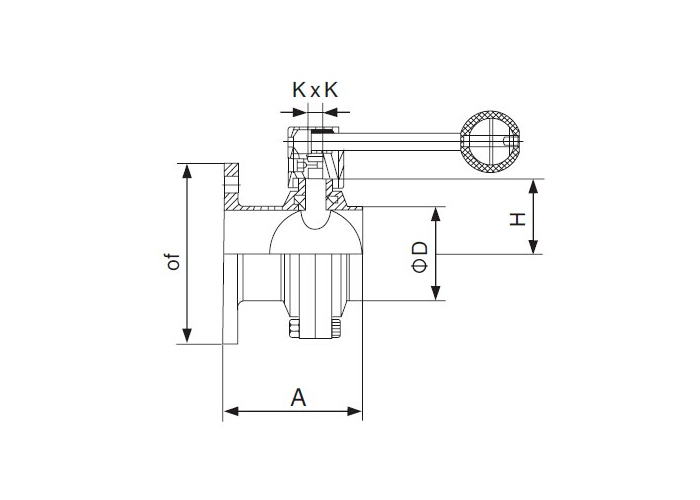

Dimension of Sanitary Square-Flanged x threaded Butterfly Valve – SMS Series

Dimension of Sanitary Square-Flanged x threaded Butterfly Valve – SMS Series

Size	O	D	Of	K x K	A	H
19	78.0	19.1	100*100	8.2*8.2	75.0	39.0
25	78.0	25.4	100*100	8.2*8.2	75.0	39.0
32	80.0	31.8	100*100	8.2*8.2	75.0	40.0
38	80.0	38.1	100*100	8.2*8.2	75.0	40.0
51	100.0	50.8	100*100	8.2*8.2	75.0	50.0

* All dimensions are in mm expect specified.

Stainless Steel Sanitary Valves - SMS Butterfly Valve For Food Brewery

For more information, please contact us.
