    Tri Clamped Stainless Steel Sanitary Pipe Fittings Clamp Reducer Conc And Ecc

    Ask Lasest Price
    Brand Name : KAYSUNS
    Certification : PED,ISO
    Model Number : KS-Hygienic
    Price : USD
    Delivery Time : 30-45days
    Supply Ability : 500Tons per Month
    • Product Details
    • Company Profile

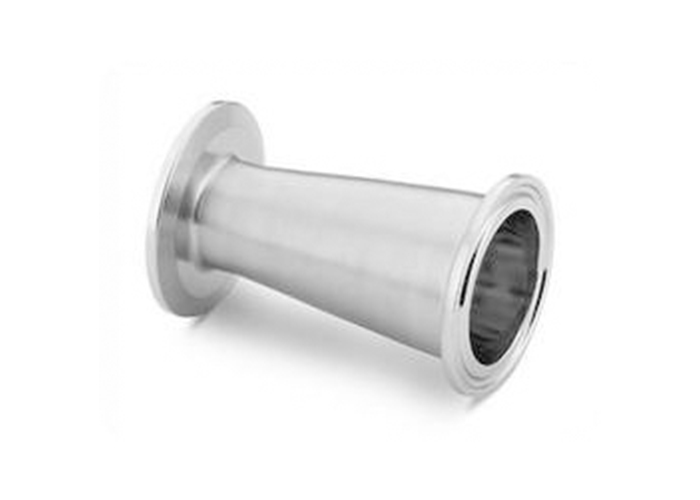

    Tri Clamped Stainless Steel Sanitary Pipe Fittings Clamp Reducer Conc And Ecc

    1/2 Inch 304 316 Stainless Steel Sanitary Pipe Fittings Clamp Reducer Conc and Ecc


    Stainless steel sanitary clamp reducer are connected by tri-clamp, use of high purity sanitary gasket to seal. The fittings are with good performance and low cost, it is most popular caused fast installation, easy assembly and unassembly in the process lines and equipment. Sanitary clamp reducer includes concentric and eccentric, made in material 304 and 316 or specified grade, with the advantage of high purity surface and corrosion resistance. Kaysuns offers sanitary Tri-clamp fittings through 1/2″ to 12″, with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc.




    Sanitary Stainless Steel and Hygienic Tri-Clamp Reducer– Conc and Ecc


    Size

    1/2″ thru 12″

    Material

    T304, T316L, EN 1.4301, EN 1.4404 etc.

    Standard

    3A, DIN, SMS, BS, ISO, BPF, ISO, IDF,INCH etc.

    End Connection

    Tri-Clamped

    Surface

    Dull polished, Descaled finish, Mirror polished

    Gasket

    PTFE, EPDM, Buna-N, Silicone Gasket

    Application

    Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.

    How to order

    * Products Name

    * Dimension

    * Material

    * Quantity

    * Standard

    * Polish requests


    Clamp Reducer– Conc and Ecc

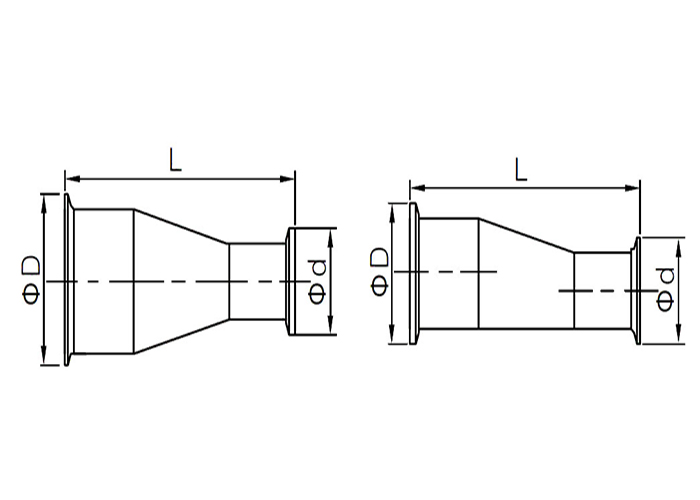

    Sanitary and Hygienic Clamp Reducer– Conc and Ecc – DIN


    Size

    ?D

    ?d

    L

    DN20-DN15

    34

    44

    86

    DN25-DN20

    50.5

    53

    86

    DN32-DN20

    50.5

    58

    106

    DN32-DN25

    50.5

    71.5

    106

    DN40-DN20

    50.5

    76.5

    128

    DN40-DN25

    50.5

    81.5

    128

    DN40-DN32

    50.5

    91.5

    128

    DN50-DN25

    64

    108

    141

    DN50-DN32

    64

    118

    141

    DN50-DN40

    64

    128

    141

    DN65-DN25

    91

    50.5

    151

    DN65-DN32

    91

    50.5

    151

    DN65-DN40

    91

    50.5

    146

    DN65-DN50

    91

    64

    146

    DN80-DN40

    106

    50.5

    166

    DN80-DN50

    106

    64

    151

    DN80-DN65

    106

    91

    146

    DN100-DN50

    119

    64

    192

    DN100-DN65

    119

    91

    159

    DN100-DN80

    119

    106

    152

    * All dimensions are in mm except specified.
    * More information about sanitary clamp reducer ,
    please contact us.
