    304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry

    Ask Lasest Price
    Brand Name : KAYSUNS
    Certification : PED,ISO
    Model Number : KS-Hygienic
    Price : USD
    Delivery Time : 30-45days
    Supply Ability : 500Tons per Month
    • Product Details
    • Company Profile

    304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry

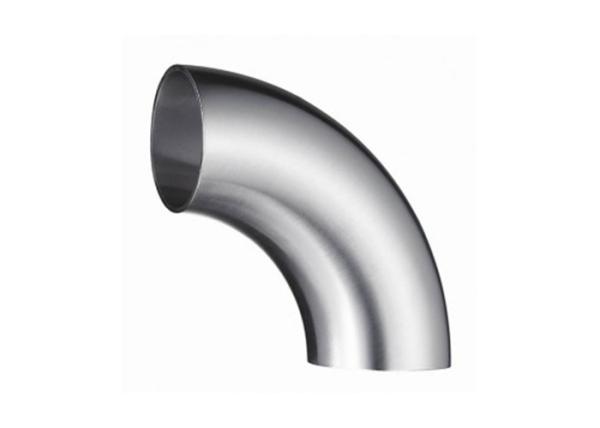

    Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow 304 / 304L


    Sanitary Weld Elbow is in the process system to change the fluid direction, it is a very important sanitary fittings to the installation. Sanitary weld elbow is made in material stainless steel 304 and 316 or specified grade, with the advantage of high cleanliness surface and corrosion resistance. We offer sanitary welding fittings through 1/2” to 12” with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc, also we are ability to offer customized weld elbow and bend.




    Sanitary and Hygienic Weld Elbow – Bend – 90° – 45°


    Size

    1/2″ thru 12″

    Material

    T304, T316L, EN 1.4301, EN 1.4404

    Standard

    3A, DIN, SMS, BS, ISO, ISO, IDF,INCH etc.

    End Connection

    Welding

    Surface

    Dull polished, Descaled finish, Mirror polished

    Application

    Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.

    How to order

    * Products Name*Size*Material*Quantity *Standard *Polish requests


    Dimension of Sanitary Weld Elbow 90 degree

    Dimension of Sanitary Weld Elbow 90°- 3A


    Size

    D

    L

    R

    1/2″

    12.7

    19.1

    19.1

    3/4″

    19.1

    28.5

    28.5

    1″

    25.4

    38.1

    38.1

    11/4″

    31.8

    47.7

    47.7

    1 1/2″

    38.1

    57.2

    57.2

    2″

    50.8

    76.2

    76.2

    2 1/2″

    63.5

    95.3

    95.3

    3″

    76.2

    114.3

    114.3

    4″

    101.6

    152.4

    152.4

    6″

    152.4

    228.6

    228.6


    Dimension of Sanitary Weld Elbow 90°- DIN

    Size

    D

    L

    R

    DN10

    12

    26

    26

    DN15

    18

    35

    35

    DN20

    22

    40

    40

    DN25

    28

    50

    50

    DN32

    34

    55

    55

    DN40

    40

    60

    60

    DN50

    52

    70

    70

    DN65

    70

    80

    80

    DN80

    85

    90

    90

    DN100

    104

    100

    100

    DN125

    129

    187

    187

    DN150

    154

    225

    225

    DN200

    204

    300

    300


    Dimension of Sanitary Weld Elbow 90°- ISO/IDF

    Size

    D

    L

    R

    12.7

    12.7

    19.1

    19.1

    19

    19.1

    28.5

    28.5

    25

    25.4

    33.5

    33.5

    32

    31.8

    38

    38

    38

    38.1

    48.5

    48.5

    45

    45

    57.5

    57.5

    51

    50.8

    60.5

    60.5

    57

    57

    68

    68

    63

    63.5

    83.5

    83.5

    76

    76.2

    88.5

    88.5

    89

    89

    103.5

    103.5

    102

    101.6

    127

    127

    108

    108

    152

    152

    114.3

    114.3

    152

    152

    133

    133

    190

    190

    159

    159

    228.5

    228.6

    204

    204

    300

    300

    219

    219

    305

    302

    254

    254

    372

    375

    304

    304

    450

    450


     Dimension of Sanitary Weld Elbow – 45° – 3A

    Dimension of Sanitary Weld Elbow – 45° – 3A

    Size

    D

    L

    R

    1/2″

    12.7

    7.9

    19.1

    3/4″

    19.1

    11.8

    28.5

    1″

    25.4

    15.8

    38.1

    1 1/4″

    31.8

    69.7

    47.7

    1 1/2″

    38.1

    74.1

    57.2

    2″

    50.8

    103.2

    76.2

    2 1/2″

    63.5

    131.8

    95.3

    3″

    76.2

    160.3

    114.3

    4″

    101.6

    211.1

    152.4

    6″

    152.4

    280

    228.6


     Dimension of Sanitary Weld Elbow – 90° with Tangent Ends- 3A

    Dimension of Sanitary Weld Elbow – 90° with Tangent Ends- 3A

    Size

    D

    L

    R

    1/2″

    12.7

    38

    19.1

    3/4″

    19.1

    38

    28.5

    1″

    25.4

    52.4

    38.1

    1 1/4″

    31.8

    69.7

    47.7

    1 1/2″

    38.1

    74.1

    57.2

    2″

    50.8

    103.2

    76.2

    2 1/2″

    63.5

    131.8

    95.3

    3″

    76.2

    160.3

    114.3

    4″

    101.6

    211.1

    152.4

    6″

    152.4

    280

    228.6


     Dimension of Sanitary Weld Elbow – 45° with Straight Ends- SMS

    Dimension of Sanitary Weld Elbow – 45° with Straight Ends- SMS

    Size

    D

    L

    R

    25

    25.4

    45

    25

    32

    31.8

    53.3

    32

    38

    38.1

    56.7

    38

    51

    50.8

    63.6

    51

    63

    63.5

    80.8

    63.5

    76

    76.2

    82

    76

    102

    101.6

    108.9

    150


    *Please contact us to get more information and specification about sanitary weld elbows.
