DN25 T304 Stainless Steel Sanitary Valves - Electric Actuated Sanitary Flanged Butterfly Valve

Electric actuated sanitary flanged butterfly valve is electric actuator operated sanitary butterfly valves with flange ends connection. We provides full line electric flanged butterfly valve from 1/2″ to 8″ in stainless steel T304, T316L etc. The electric actuator can be selected upon client’s request, either of China origin or EU/USA brand. Sanitary butterfly valve is our strength sanitary valves , it comply with 3A, DIN, SMS, ISO, DS standards etc, with excellent precision and high purity surface. We are your reliable partner for processing controlling of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.

Strengths:

• Forged valve body – stainless steel T304, T316L.

• Simple and robust design.

• Low pressure losing.

• Renewable design of valve body.

• Every connection of flanged, butt welded, tri-clamp, threaded etc.

• Different series of DIN, 3A, SMS, ISO, IDF, RJT, DS on request.

• Electric actuator brand on request.

• Sealing materials conform to FDA 177.2600.

Parameter of Electric Actuator:

• Protection degree: IP-67.

• Environment temperature: -2°C ~ 60°C (other temperature can be custom made).

• Installment angle: any angle.

• Material of body: aluminum alloy diecasting.

• Features optional: torque than the protection, heated dehumidifier, over-heat protection.

• Hand operation: by detachable hexagon.

• Spacing: electrically: completely close and open limit switch.

• Manually: link stopper.

• Input signal: 4-20mA.DC, 1-5V.DC, 0-10V.DC (other signals can be chose before leaving factory).

• Output signal: 4-20m A.DC, 0-10V.DC (other signals can be chose before leaving factory).

• Voltage: AC.24V 110V 220V 380V DC.24V Frequency: 50HZ,60 HZ.

• Type of control: on-off indicator light, passive contact point, opening position, intelligent control

• Switching time(S): 9,10,13,15,20,25,30,50,60,1000.

Application:

Pharmacy, Beer, Food, BioPharm, Dairy, Beverage, Biotech, Cosmetics etc.

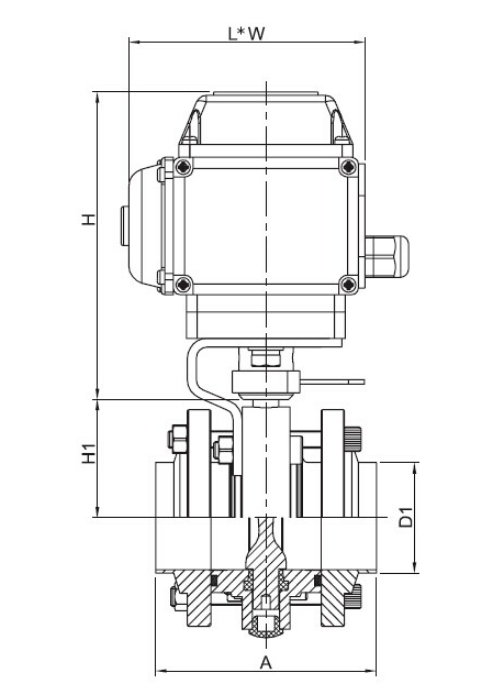

Dimension of Electric Actuated Flanged(three-piece) Butterfly Valve -DIN Series

Dimension of Electric Actuated Flanged(three-piece) Butterfly Valve -3A, SMS, ISO, DS Series

*All dimension are in mm except specified.

For more information, please contact us.
