High Pressure Large Diameter Stainless Steel Pipe Cracking Resistance For Gas

    Buy cheap High Pressure Large Diameter Stainless Steel Pipe Cracking Resistance For Gas from wholesalers

    Buy cheap High Pressure Large Diameter Stainless Steel Pipe Cracking Resistance For Gas from wholesalers
    • Buy cheap High Pressure Large Diameter Stainless Steel Pipe Cracking Resistance For Gas from wholesalers
    • Buy cheap High Pressure Large Diameter Stainless Steel Pipe Cracking Resistance For Gas from wholesalers

    High Pressure Large Diameter Stainless Steel Pipe Cracking Resistance For Gas

    Ask Lasest Price
    Brand Name : KAYSUNS
    Model Number : KS-SMLS
    Certification : PED,ISO
    Price : USD
    Supply Ability : 500Tons per Month
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

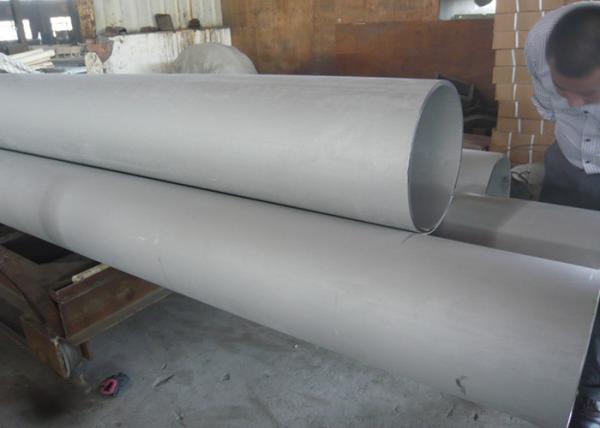

    High Pressure Large Diameter Stainless Steel Pipe Cracking Resistance For Gas

    DN250 Sch40 / Sch40s ASTM A312 Large Diameter Stainless Steel Pipe TP316 / 316L For Gas


    Steel pipes are found in a variety of places. Since they are strong, they are used underground for
    transporting water and gas throughout cities and towns. They are also employed in construction to protectelectrical wires. While steel pipes are strong, they can also be lightweight. This makes them perfect for use in bicycle frame manufacture.Other places they find utility is in automobiles,refrigeration units, heating and plumbing systems, flagpoles, street lamps, and medicine to name a few.


    • Cold Rolling is a preferred production process for high precision seamless tube. Most of our heat exchanger tubing and mechanical tube are made by cold rolling. This technique provides a high forming rate, narrow tolerances and good turnouts. Now the biggest diameter we can get is 168.3mm for this process.
    • Cold Drawing is the general process for our tube and pipe. Pipe&tubes from this process can be got a a very narrow tolerance ranges, and keep the chemical element well. Additionally, the cold drawing process is the perfect choice for situations which place high requirements on the quality of the surface structure.

    DNNPS(Inch)D(mm)SCH5SSCH10SSCH40SSTDSCH40SCH80XSSCH80SSCH160XXS
    61/810.30-1.241.731.731.732.412.412.41--
    81/413.70-1.652.242.242.243.023.023.02--
    103/817.10-1.652.312.312.313.203.203.20--
    151/221.301.652.112.772.772.773.733.733.734.787.47
    203/426.701.652.112.872.872.873.913.913.915.567.82
    25133.401.652.773.383.383.384.554.554.556.359.09
    321 1/442.201.652.773.563.563.564.854.854.856.359.70
    401 1/248.301.652.773.683.683.685.085.085.087.1410.15
    50260.301.652.773.913.913.915.545.545.548.7411.07
    652 1/273.002.113.055.165.165.167.017.017.019.5314.02
    80388.902.113.055.495.495.497.627.627.6211.1315.24
    903 1/2101.602.113.055.745.745.748.088.088.08--
    1004114.302.113.056.026.026.028.568.568.5613.4917.12
    1255141.302.773.406.556.556.559.539.539.5315.8819.05
    1506168.302.773.407.117.117.1110.9710.9710.9718.2621.95
    2008219.102.773.768.188.188.1812.7012.7012.7023.0122.23
    25010273.103.404.199.279.279.2715.0912.7012.7028.5825.40



    Composition:


    Elements316L (wt%) S31603316 (wt%) S31600
    (C) Carbon, max0.0350.08
    (Mn) Manganese, max22
    (P) Phosphorus, max0.0450.045
    (S) Sulfur, max0.030.03
    (Si) Silicon, max11
    (Ni) Nickel10.0 - 14.010.0 - 14.0
    (Cr) Chromium16.0 - 18.016.0 - 18.0
    (Mo) Molybdenum2.0 - 3.02.0 - 3.0
    (Fe) IronBal.Bal.
    (Cu) CopperN/AN/A
    (N) NitrogenN/A

    N/A


    C(max)Si(max)Mn(max)P(max)S(max)CrNiMoTi
    TP304/1.43010.0801.002.000.0450.03018.0-20.08.0-10.5
    TP304L/1.43070.0351.002.000.0450.03018.0-20.08.0-12.0
    TP304H/1.49480.04-0.101.002.000.0450.03018.0-20.08.0-12.0
    TP316/1.44010.0801.002.000.0450.03016.0-18.011.0-14.02.0-3.0
    TP316L/1.44040.0351.002.000.0450.03016.0-18.010.0-14.02.0-3.0
    TP316Ti/1.45710.0801.002.000.0450.03016.0-18.010.0-14.02.0-3.00.7>5x(C+N)
    TP321/1.45410.0801.002.000.0450.03017.0-19.09.0-12.00.7>5x(C+N)
    TP317L/1.44490.0801.002.000.0450.03018.0-20.011.0-14.03.0-4.0
    TP347H/1.49120.04-0.101.002.000.0450.03017.0-19.09.0-13.0
    TP309S/1.48330.0801.002.000.0450.03022.0-24.012.0-15.00.75
    TP310S/1.48450.0801.002.000.0450.03024.0-26.019.0-22.00.75

    Size:1/2” to 60” (DN15 ~DN1500), outer diameter up to 1500mm
    Rate:SCH5S to SCHXXS
    Standard:

    ASTM A312, A213, A268,A269, A249, A270, A376,A511;
    ASTM A789, A790;
    ASTM B163, B165, B167, B407, B423, B444, B622, B677, B729;
    EN10216-5, EN/DIN17455,EN/DIN17456, EN/DIN17458DIN2462 etc.

    Material:

    Stainless: TP304,304L,304H,316,316L,316H,316Ti,317,317L,309S,310S,310H,347,347H,321,321H, 904L, S31254
    (mat.1.4301,1.4307,1.4948,1.4401,1.4404,1.4571,1.4438,1.4438, 1.4833,1.4841,1.4845,1.4845,1.4450,1.4541,1.4878,1.4539, 1.4547/254SMO) etc.


    Duplex: UNS S31803 , S32205, S32750,S32760,S32304 (Mat.1.4462,1.4410,1.4501,1.4362)etc.


    Alloy: Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy B2, Hastelloy C-22, Hastelloy C-276, 15-5PH, 17-7PH,Cu70Ni30(C71500/B30), Cu90Ni10(C70600/B10)etc.


    DN250 Sch40 Sch40s ASTM A312 Seamless Stainless Steel Pipes TP316 316L
    Our factory is a leading manufacturer and supplier for qualified Large Diameter Stainless Steel Pipe, includes ASME/ASTM, EN/DIN, JIS series stainless steel pipes, and a wide range for material grades.


    For more information, please contact us.
