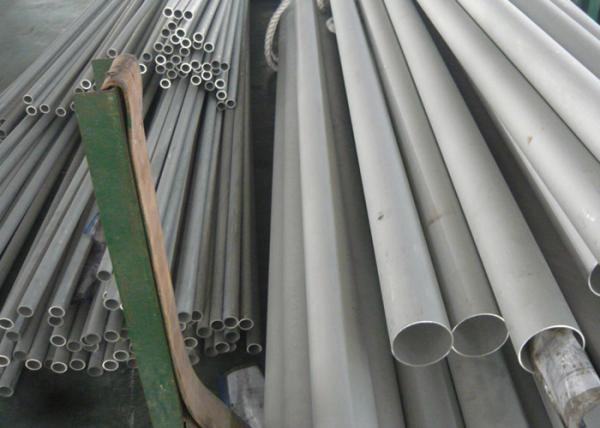

40mm Small Bore Seamless Stainless Steel Pipe Tube Chemical Resistance Thin Wall Metal Tubing

    Buy cheap 40mm Small Bore Seamless Stainless Steel Pipe Tube Chemical Resistance Thin Wall Metal Tubing from wholesalers

    Buy cheap 40mm Small Bore Seamless Stainless Steel Pipe Tube Chemical Resistance Thin Wall Metal Tubing from wholesalers
    • Buy cheap 40mm Small Bore Seamless Stainless Steel Pipe Tube Chemical Resistance Thin Wall Metal Tubing from wholesalers
    • Buy cheap 40mm Small Bore Seamless Stainless Steel Pipe Tube Chemical Resistance Thin Wall Metal Tubing from wholesalers

    40mm Small Bore Seamless Stainless Steel Pipe Tube Chemical Resistance Thin Wall Metal Tubing

    Ask Lasest Price
    Brand Name : KAYSUNS
    Model Number : KS-SMLS
    Certification : PED,ISO
    Price : USD
    Supply Ability : 500Tons per Month
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

    40mm Small Bore Seamless Stainless Steel Pipe Tube Chemical Resistance Thin Wall Metal Tubing

    DN25 SCH40 / SCH40s TP304 / 304L Seamless Stainless Steel Pipes ASTM A312, A213

    Cold Rolling is a preferred production process for high precision seamless tube. Most of our heat exchanger tubing and mechanical tube are made by cold rolling. This technique provides a high forming rate, narrow tolerances and good turnouts. Now the biggest diameter we can get is 168.3mm for this process.


    Cold Drawing is the general process for our tube and pipe. Pipe&tubes from this process can be got a a very narrow tolerance ranges, and keep the chemical element well. Additionally, the cold drawing process is the perfect choice for situations which place high requirements on the quality of the surface structure.



    Composition:


    Elements304L(wt%) S30403304(wt%) S30400
    (C) Carbon, max0.0350.08
    (Mn) Manganese, max22
    (P) Phosphorus, max0.0450.045
    (S) Sulfur, max0.030.03
    (Si) Silicon, max11
    (Ni) Nickel8.0 - 12.08.0 - 11.0
    (Cr) Chromium18.0 - 20.018.0 - 20.0
    (Mo) MolybdenumN/AN/A
    (Fe) IronBal.Bal.
    (Cu) CopperN/AN/A
    (N) NitrogenN/AN/A


    C(max)Si(max)Mn(max)P(max)S(max)CrNiMoTi
    TP304/1.43010.0801.002.000.0450.03018.0-20.08.0-10.5
    TP304L/1.43070.0351.002.000.0450.03018.0-20.08.0-12.0
    TP304H/1.49480.04-0.101.002.000.0450.03018.0-20.08.0-12.0
    TP316/1.44010.0801.002.000.0450.03016.0-18.011.0-14.02.0-3.0
    TP316L/1.44040.0351.002.000.0450.03016.0-18.010.0-14.02.0-3.0
    TP316Ti/1.45710.0801.002.000.0450.03016.0-18.010.0-14.02.0-3.00.7>5x(C+N)
    TP321/1.45410.0801.002.000.0450.03017.0-19.09.0-12.00.7>5x(C+N)
    TP317L/1.44490.0801.002.000.0450.03018.0-20.011.0-14.03.0-4.0
    TP347H/1.49120.04-0.101.002.000.0450.03017.0-19.09.0-13.0
    TP309S/1.48330.0801.002.000.0450.03022.0-24.012.0-15.00.75
    TP310S/1.48450.0801.002.000.0450.03024.0-26.019.0-22.00.75

    Size:1/2” to 60” (DN15 ~DN1500), outer diameter up to 1500mm
    Rate:SCH5S to SCHXXS
    Standard:

    ASTM A312, A213, A268,A269, A249, A270, A376,A511;
    ASTM A789, A790;
    ASTM B163, B165, B167, B407, B423, B444, B622, B677, B729;
    EN10216-5, EN/DIN17455,EN/DIN17456, EN/DIN17458DIN2462 etc.

    Material:

    Stainless: TP304,304L,304H,316,316L,316H,316Ti,317,317L,309S,310S,310H,347,347H,321,321H, 904L, S31254
    (mat.1.4301,1.4307,1.4948,1.4401,1.4404,1.4571,1.4438,1.4438, 1.4833,1.4841,1.4845,1.4845,1.4450,1.4541,1.4878,1.4539, 1.4547/254SMO) etc.


    Duplex: UNS S31803 , S32205, S32750,S32760,S32304 (Mat.1.4462,1.4410,1.4501,1.4362)etc.


    Alloy: Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy B2, Hastelloy C-22, Hastelloy C-276, 15-5PH, 17-7PH,Cu70Ni30(C71500/B30), Cu90Ni10(C70600/B10)etc.


    DN25 SCH40 SCH40s TP304 304L Seamless Stainless Steel Pipes ASTM A312, A213
    Our factory is a leading manufacturer and supplier for qualified stainless steel seamless pipes, includes ASME/ASTM, EN/DIN, JIS series stainless steel pipes, and a wide range for material grades.


    For more information, please contact us.
