ASTM A213 A269 Schedule 40 Stainless Steel Pipe , Class 150 Threaded Stainless Steel Tubing

Ask Lasest Price
Brand Name :	KAYSUNS
Model Number :	KS-SMLS
Certification :	PED,ISO
Price :	USD
Supply Ability :	500Tons per Month
Delivery Time :	30-45days

Add to Cart

Product Details
Company Profile

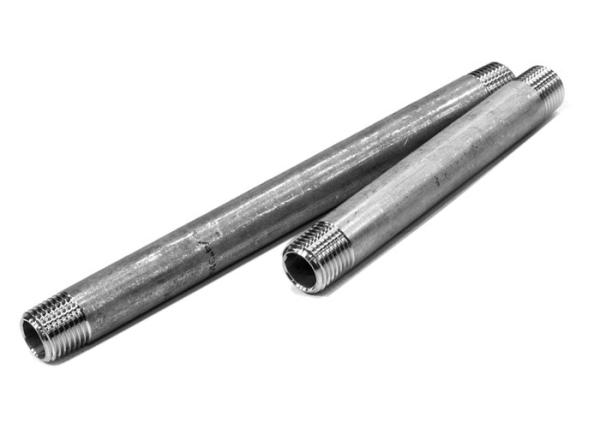

ASTM A213 A269 Schedule 40 Stainless Steel Pipe , Class 150 Threaded Stainless Steel Tubing

Schedule 40 ASTM A312, A213,A269 Stainless Steel Threaded Pipes Class 150

Kaysuns stainless steel threaded pipes are designed for use with Class 150 stainless steel threaded pipe for applications with air, water, oil, natural gas, and steam. NPT thread. Max. pressure: 150 psi WOG at 150°F Temp. range: -60° to 450°F.

DN	NPS(Inch)	D(mm)	SCH5S	SCH10S	SCH40S	STD	SCH40	SCH80	XS	SCH80S	SCH160	XXS
6	1/8	10.30	-	1.24	1.73	1.73	1.73	2.41	2.41	2.41	-	-
8	1/4	13.70	-	1.65	2.24	2.24	2.24	3.02	3.02	3.02	-	-
10	3/8	17.10	-	1.65	2.31	2.31	2.31	3.20	3.20	3.20	-	-
15	1/2	21.30	1.65	2.11	2.77	2.77	2.77	3.73	3.73	3.73	4.78	7.47
20	3/4	26.70	1.65	2.11	2.87	2.87	2.87	3.91	3.91	3.91	5.56	7.82
25	1	33.40	1.65	2.77	3.38	3.38	3.38	4.55	4.55	4.55	6.35	9.09
32	1 1/4	42.20	1.65	2.77	3.56	3.56	3.56	4.85	4.85	4.85	6.35	9.70
40	1 1/2	48.30	1.65	2.77	3.68	3.68	3.68	5.08	5.08	5.08	7.14	10.15
50	2	60.30	1.65	2.77	3.91	3.91	3.91	5.54	5.54	5.54	8.74	11.07
65	2 1/2	73.00	2.11	3.05	5.16	5.16	5.16	7.01	7.01	7.01	9.53	14.02
80	3	88.90	2.11	3.05	5.49	5.49	5.49	7.62	7.62	7.62	11.13	15.24
90	3 1/2	101.60	2.11	3.05	5.74	5.74	5.74	8.08	8.08	8.08	-	-
100	4	114.30	2.11	3.05	6.02	6.02	6.02	8.56	8.56	8.56	13.49	17.12
125	5	141.30	2.77	3.40	6.55	6.55	6.55	9.53	9.53	9.53	15.88	19.05
150	6	168.30	2.77	3.40	7.11	7.11	7.11	10.97	10.97	10.97	18.26	21.95
200	8	219.10	2.77	3.76	8.18	8.18	8.18	12.70	12.70	12.70	23.01	22.23
250	10	273.10	3.40	4.19	9.27	9.27	9.27	15.09	12.70	12.70	28.58	25.40

Composition:

Elements	316L (wt%) S31603	316 (wt%) S31600
(C) Carbon, max	0.035	0.08
(Mn) Manganese, max	2	2
(P) Phosphorus, max	0.045	0.045
(S) Sulfur, max	0.03	0.03
(Si) Silicon, max	1	1
(Ni) Nickel	10.0 - 14.0	10.0 - 14.0
(Cr) Chromium	16.0 - 18.0	16.0 - 18.0
(Mo) Molybdenum	2.0 - 3.0	2.0 - 3.0
(Fe) Iron	Bal.	Bal.
(Cu) Copper	N/A	N/A
(N) Nitrogen	N/A	N/A

	C(max)	Si(max)	Mn(max)	P(max)	S(max)	Cr	Ni	Mo	Ti
TP304/1.4301	0.080	1.00	2.00	0.045	0.030	18.0-20.0	8.0-10.5
TP304L/1.4307	0.035	1.00	2.00	0.045	0.030	18.0-20.0	8.0-12.0
TP304H/1.4948	0.04-0.10	1.00	2.00	0.045	0.030	18.0-20.0	8.0-12.0
TP316/1.4401	0.080	1.00	2.00	0.045	0.030	16.0-18.0	11.0-14.0	2.0-3.0
TP316L/1.4404	0.035	1.00	2.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0
TP316Ti/1.4571	0.080	1.00	2.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0	0.7>5x(C+N)
TP321/1.4541	0.080	1.00	2.00	0.045	0.030	17.0-19.0	9.0-12.0		0.7>5x(C+N)
TP317L/1.4449	0.080	1.00	2.00	0.045	0.030	18.0-20.0	11.0-14.0	3.0-4.0
TP347H/1.4912	0.04-0.10	1.00	2.00	0.045	0.030	17.0-19.0	9.0-13.0
TP309S/1.4833	0.080	1.00	2.00	0.045	0.030	22.0-24.0	12.0-15.0	0.75
TP310S/1.4845	0.080	1.00	2.00	0.045	0.030	24.0-26.0	19.0-22.0	0.75

Size:	1/2” to 60” (DN15 ~DN1500), outer diameter up to 1500mm
Rate:	SCH5S to SCHXXS
Standard:	ASTM A312, A213, A268,A269, A249, A270, A376,A511; ASTM A789, A790; ASTM B163, B165, B167, B407, B423, B444, B622, B677, B729; EN10216-5, EN/DIN17455,EN/DIN17456, EN/DIN17458DIN2462 etc.
Material:	Stainless: TP304,304L,304H,316,316L,316H,316Ti,317,317L,309S,310S,310H,347,347H,321,321H, 904L, S31254 (mat.1.4301,1.4307,1.4948,1.4401,1.4404,1.4571,1.4438,1.4438, 1.4833,1.4841,1.4845,1.4845,1.4450,1.4541,1.4878,1.4539, 1.4547/254SMO) etc. Duplex: UNS S31803 , S32205, S32750,S32760,S32304 (Mat.1.4462,1.4410,1.4501,1.4362)etc. Alloy: Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy B2, Hastelloy C-22, Hastelloy C-276, 15-5PH, 17-7PH,Cu70Ni30(C71500/B30), Cu90Ni10(C70600/B10)etc.

Schedule 40 ASTM A312, A213,A269 Stainless Steel Threaded Pipes Class 150
Our factory is a leading manufacturer and supplier for qualified stainless steel threaded pipes, includes ASME/ASTM, EN/DIN, JIS series stainless steel pipes, and a wide range for material grades.

For more information, please contact us.
